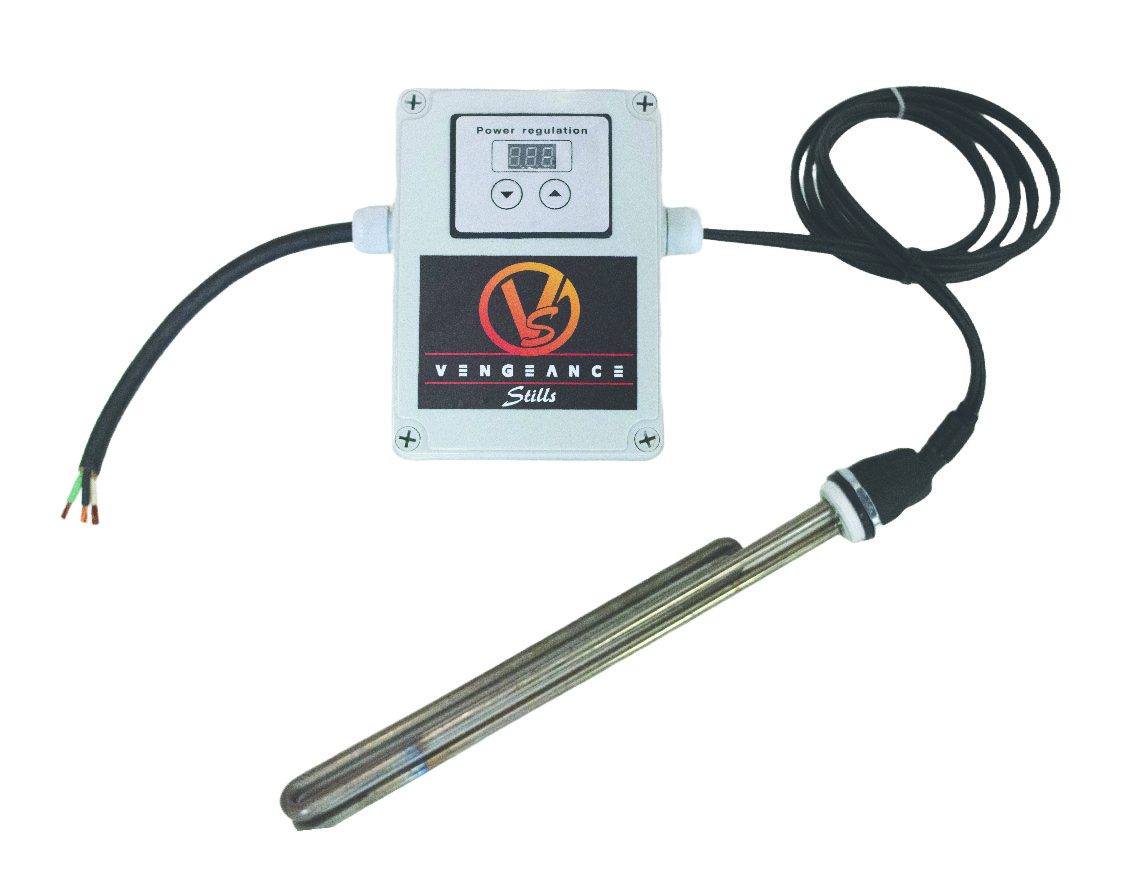

5500 Watt Economy Voltage Controller

Description

The Voltage Distilling Controller by Vengeance Stills is hands down the best value on the market to throttle the pot temps using electric power.

For use with Stills 20-50 gallons

Our Controller allows user to adjust the incoming voltage to throttle power. This economy does not include a PID therefore the temperature readings are taken from the thermometer on the Pot itself. The LED screen displays power from 0-100% (meaning if 50 is on the display, the unit is pulling approx 2,750 watts).  To bring the pot to temp, set the controller to 100 and then once disitillation temperature is achieved, throttle it down to the desired distillation flow rate by lowering the power (# on the LED screen).

Let’s take a look and see what’s included:

5500 Watt Voltage Distilling Controller

Waterproof enclosure

5500 watt heating element

* We leave the incoming power wire bare so you can either wire it into a Spa Tub 30-amp quick disconnect (preferred) and then to your 220 volt source.  This controller DOES NOT use a nuetral wire, just (2) power wires and a ground wire. You can install an appropriate male connector to use in most any existing 220 volt outlets, just make sure the power wires are matched up correctly when installing a 4-prong plug (since 1 is a nuetral and is not used).

*** Please allow up to 5-days to ship as these are hand built here at Vengeance
